  • New Design Hot Sale Automatic Lubrication Biomass Wood Pellet Machine
  • New Design Hot Sale Automatic Lubrication Biomass Wood Pellet Machine
  • New Design Hot Sale Automatic Lubrication Biomass Wood Pellet Machine
  • New Design Hot Sale Automatic Lubrication Biomass Wood Pellet Machine
  • New Design Hot Sale Automatic Lubrication Biomass Wood Pellet Machine
New Design Hot Sale Automatic Lubrication Biomass Wood Pellet MachineNew Design Hot Sale Automatic Lubrication Biomass Wood Pellet MachineNew Design Hot Sale Automatic Lubrication Biomass Wood Pellet MachineNew Design Hot Sale Automatic Lubrication Biomass Wood Pellet MachineNew Design Hot Sale Automatic Lubrication Biomass Wood Pellet Machine

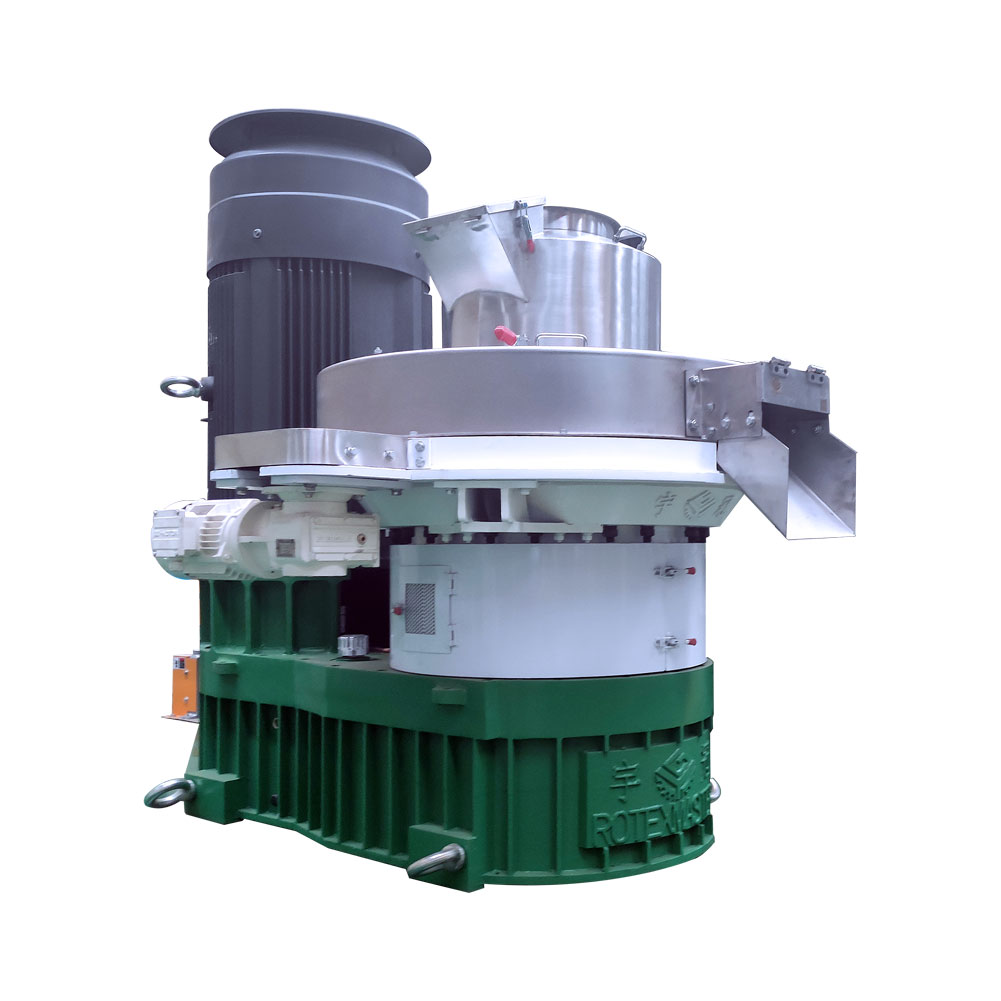

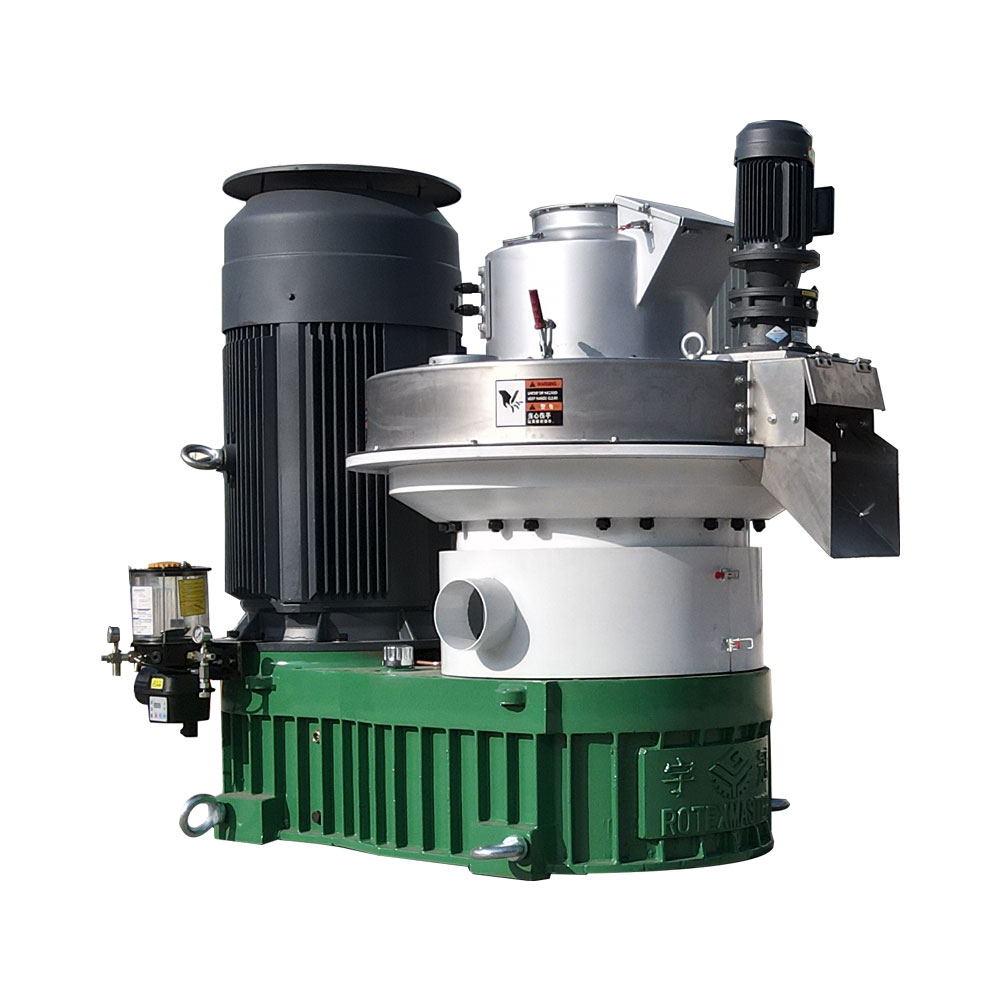

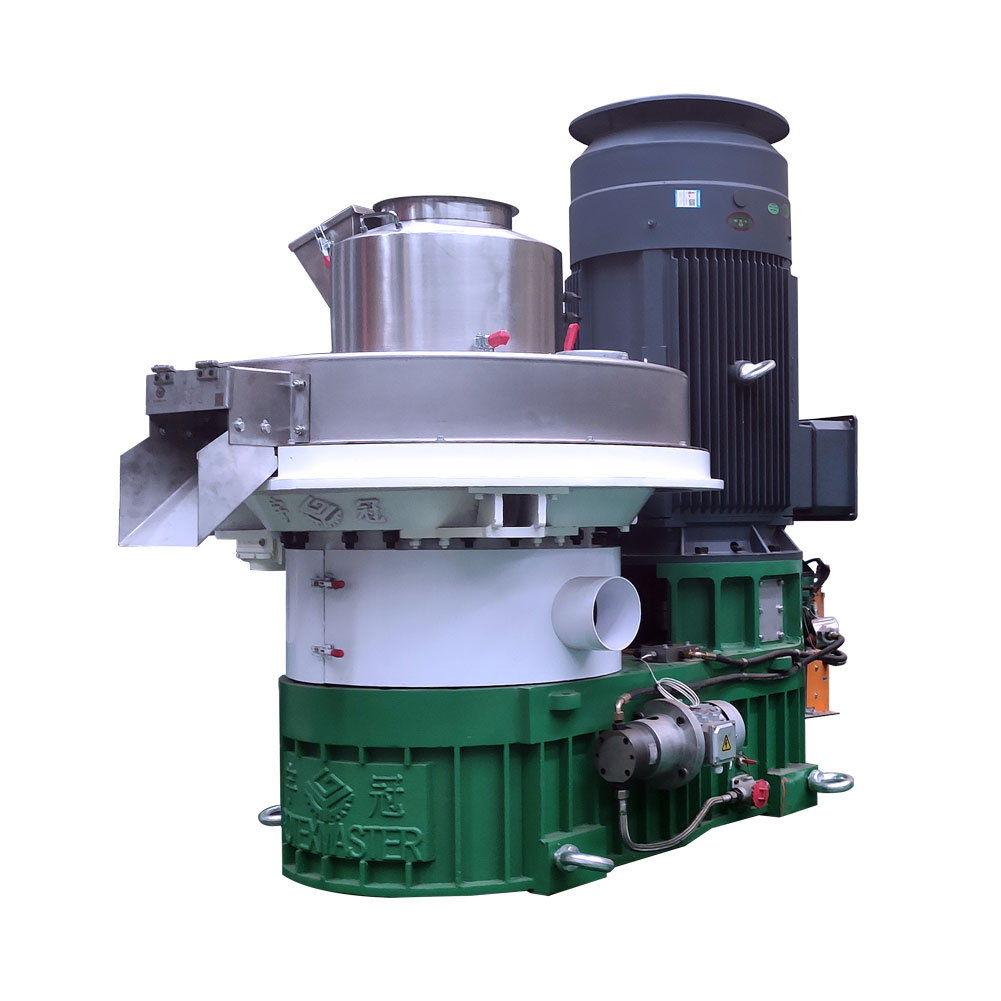

New Design Hot Sale Automatic Lubrication Biomass Wood Pellet Machine

  • Product Item : YGKJ700
  • Category: Wood Pellet
  • Views:69980
  • Power: 132/160
  • Pellet Size: 6-12mm
  • Dimension: 2400*1400*1800mm
  • Weight: 7.8t
  • Product description:Vertical ring die wood pellet machine is the new design wood pellet maker to make biomass fuel pellets. biomass pellet machine is suitable for all kinds of hard and soft wood, rice husk, peanut shells
  • Order online

Model

YGKJ560-B

YGKJ700

YGKJ880

Power(kw)

90/100

132/160

220

Capacity(t/h)

1.3-1.5

2-3

3-4

Pellet Size(mm)

6-12

6-12

6-12

Weight(t)

5.8

7.8

12

1.High automation, No need to take care.
In the process of operation, the control panel, tablet computer and mobile APP can be used to monitor the temperature of critical parts and the electric current of the equipment.

2.Independent lubrication and non-independent lubrication can be switched.

3.Reducer drive strengthen.
The gearbox adopts independent research and development big gear with 3 level drive , module increased , gear strengths increased , The gears in gearbox quality assurance for five years!

4.Die: stainless steel,with high wear resistance and high capacity.
Die of biomass pellet machine adopt integral carburizing stainless steel, high wear resistance, good stability, discharge area increase, enhance the capacity and reduce cost.

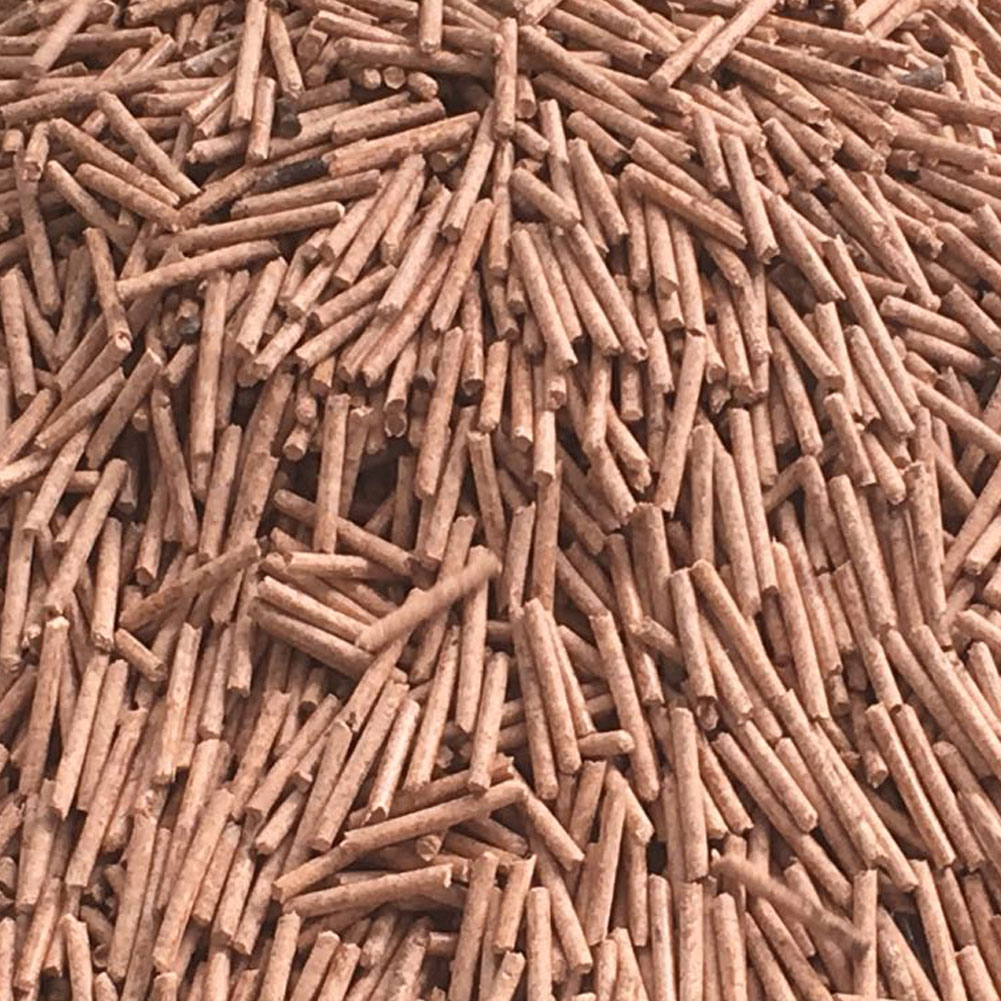

Raw material:

Bamboo

Sawdust

Shell

Straw

Wood

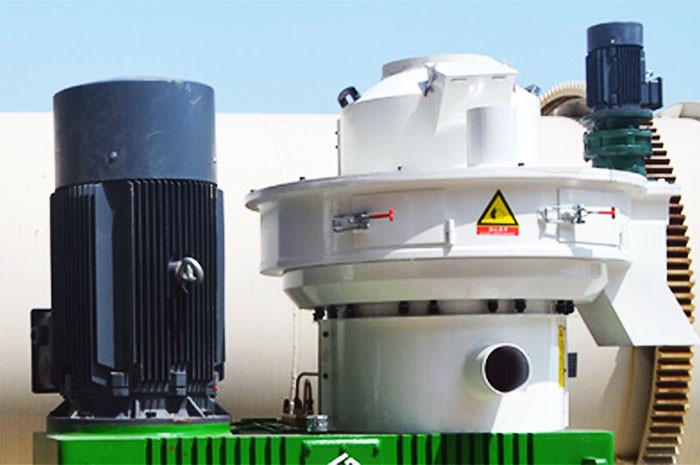

Siemens Brand Motor:
Motor of biomass pellet machine use Siemens Brand. This kind of motor is frequency and has thick copper coil, it won’t be burned due to instantaneous current.

Parallel vertical installation reduce energy consumption loss

The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.



High automation, No need to take care.

In the process of operation, the control panel, tablet computer and mobile APP can be used to monitor the temperature of critical parts and the electric current of the equipment.

Die: stainless steelwith high wear resistance and high capacity.

Die of biomass pellet machine adopt integral carburizing stainless steel, high wear resistance, good stability, discharge area increase, enhance the capacity and reduce cost.

Cooling System of Gearbox enhance the internal bearing life.

Gearbox Lubricant of wood pellet machine adopts bypass water cooling system to avoid oil temperature is too high, greatly enhance the internal bearing life.

Casting material of gearbox with high stability

Gearbox shell of wood pellet machine adopts casting. Weight of shell is 2.5t. Castings have advantages of good rigidity, good heat dissipation, Low heat distortion and high stability.
